2008 TrophyLite R-4

Click on the images below for a larger view

Chassis #09 - $59,000

PICK UP AND HEAD TO RACE

This truck is prepped and ready to race! Includes 18' flad bed trailer, full spare package and only two races on brand new crate motor. One race on Culhane T350. Rear end and housing just serviced by Currie. One race on rebuilt shocks and coil overs. 110 Watt Kenwood radio. Fire suppression system. Powder coated frame. Triple core radiator.

All TL updates. Includes all pit support: Five dump cans, three complete pit boxes, fire extinguishers, fueling suits, aprons, etc. Everything you need to arrive & drive.

Spare Parts Package:
- Spare motor - one race
- New Serviced Transmission (Culhane)
- Complete suspension spares package
- Spare Alt., Power steering pump & servo
- Spare radiator, trans cooler & both fans
- 10 Yokohama tires on Ultra X103 wheels
- Too much to list!

Pit Support Package:
- Fire suits, face masks, fire extinguisher
- 6 11 gallon dump cans
- Pro Eagle big wheel jack
- Nitrogen tank
- Ground protection (spill protection)
- 110 gallons of VP race fuel
- Driver/passenger fire suits helmets with side air, hans neck brace, fire shoes (if they fit you)

Trophylite R-4 - Vehicle Specifications

Main Chassis:
- 111" Wheelbase
- 77" Wide (outside tires)
- 33" General Grabber Tires
- 15" Beadlock Method Race Wheels
- 1 Rear spare tire mount
- 22 gallon fuel cell with 2 1/2" or 3" fuel neck
- Large fuel vent line for fast filling

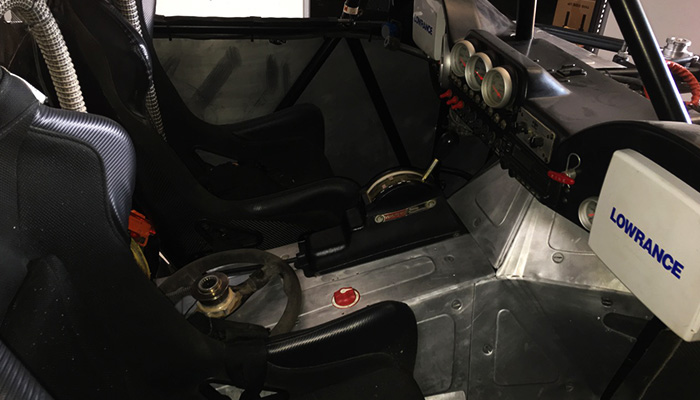

- Mastercraft Pro Seats
- Fiberglass body work to match engine manufacturer
- Full aluminum panels
- Electrical wiring and plumbing
- Mastercraft Pro Seats
- Wilwood brakes and CNC

Rear Suspension:
- Trailing arm 4-link with 18" of wheel travel
- Fox 3.0" By-pass shock with 3 compression and 2 rebound tubes
- 9" style fully fabricated Currie F-9 housing
- Center section features 9" Currie Spool

Front Suspension: - A-Arm front end with 18" of wheel travel
- Fox 2" Coil-over with dual rate springs
- HOWE 2.5" rack and pinion with servo
- Custom tie rod and mount set to match chassis
- Wilwood brakes with vented rotors

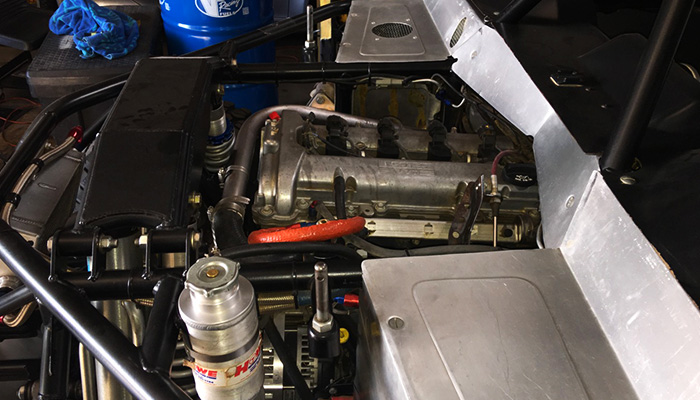

Power Train: - Your choice of either:
Ford 2.0L fuel injected engine sealed and tagged
GM 2.4L fuel injected engine sealed and tagged
200 HP engine program designed to keeps cost down
- Turbo 350 transmission with spec torque converter and billet tail housing
- Sealed computer unit
- Aluminum transmission coller with fan
- Spec headers and exhaust system

Contact Info

Price: $59,000
Contact: Todd Mozden
Phone: (310)619-4076
